03 · INSPECT

Look closer before you cut.

Captured from the app · 37e94b0

Find the affected boards, understand the finding, and review a correction before changing your project.

The Inspect workspace: a findings queue beside the model.
The Inspect workspace with the starter side table, captured from the current app.

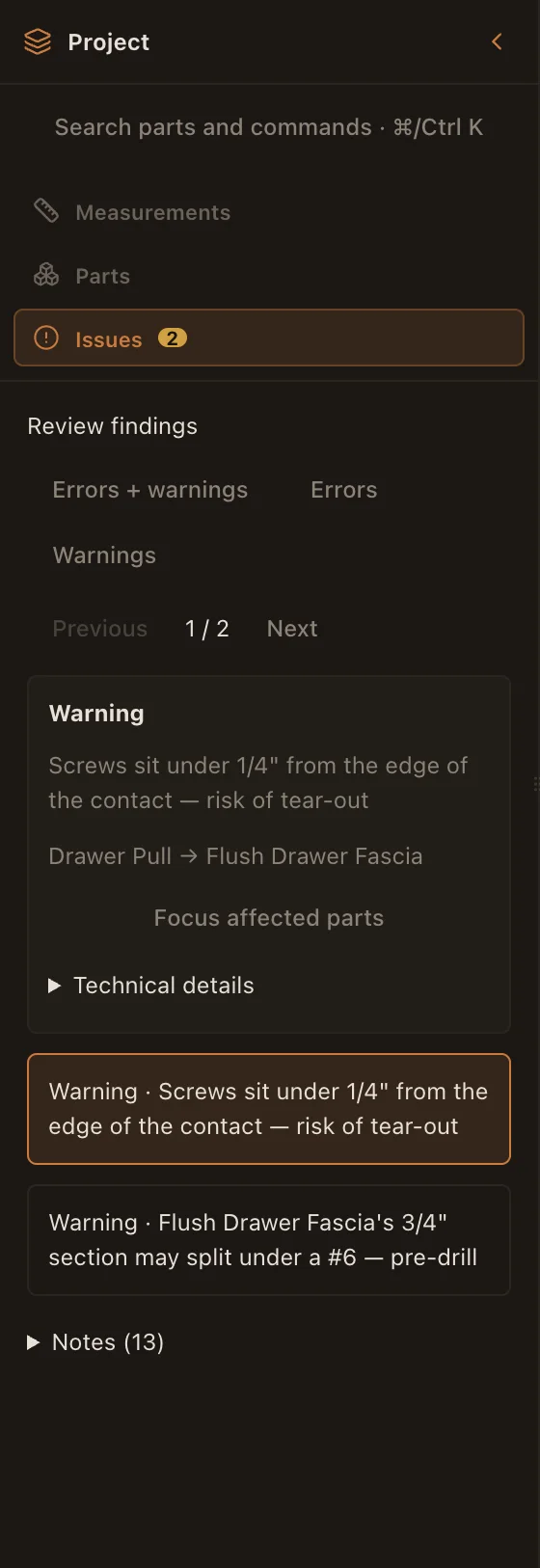

Findings queue: two warnings on the drawer pull screws, with the affected parts named.
The findings queue for the starter: two warnings on the drawer pull screws.
FEATURES

What Inspect does

01

A guided findings queue

Review errors and warnings first, with informational notes available separately. Move through findings and focus the involved parts.

02

Preview a proposed correction

Where a fix is available, inspect its before-and-after values and validation result. Only Apply fix changes the joint.

03

See inside the assembly

Section and exploded views expose joints that are hidden in a complete piece. Measurements help you investigate the fit.

04

Saved inspection views

Save a camera, isolation, section and explode state. Return to a named view, or make it the opening view for the project.

05

Keep your bearings

Fit the model or selection and return to the previous view. Each workspace remembers its layout and camera during the session.

Open GrainDraft Follow the side-table walkthrough →
